3-PHASE NEMA34 SERIES CLOSED LOOP STEPPING MOTOR 34CF3P
3-PHASE EASY SERVO MOTOR 34CF3P
General Specifications：
Step Angle --------------------------------------------------------1.2° (full step)
Step Angle Accuracy --------------------------------±5%(full step, no load)
Resistance Accuracy ------------------------------------------------------±10%
Inductance Accuracy ------------------------------------------------------±20%
Temperature Rise -----------------80℃ Max(rated current, 2 phases on)
Ambient Temperature Range ------------------------------- -20℃∽+50℃
Insulation Resistance -------------------------------- 100MΩ Min. 500VDC
Dielectric Strength ------------------------------750VAC 50Hz 1mA 1 Minute
Insulation Class --------------------------------------------------B Class (130℃)
Electrical Specifications:
Model | L Motor Length (mm) | Holding Torque (N.m) Min. | Rated Current (A) | Phase Resistance (Ω) | Phase Inductance (mH) | Rotor Inertia (kg.cm²) | Motor Weight (kg) | |
2500 Encoder | 1000 Encoder | |||||||
34CF3P80-2500 | 34CF3PP80-1000 | 80 | 3 | 3.4 | 3.2 | 18 | 1.23 | 2.3 |
34CF3P118-2500 | 34CF3P118-1000 | 118 | 6 | 4.0 | 1. 9 | 17 | 3.3 | 3.7 |
34CF3P150-2500 | 34CF3P150-1000 | 150 | 9 | 4.0 | 2.5 | 22 | 5.1 | 5.5 |
All the above are basic type. Customization for special specification and requirement is available.

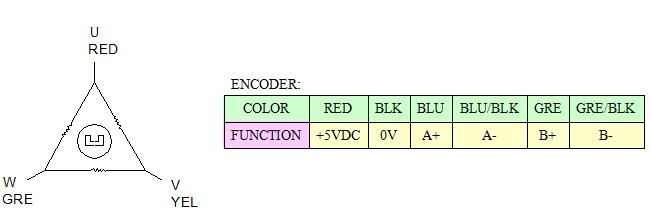

Wiring Diagram：

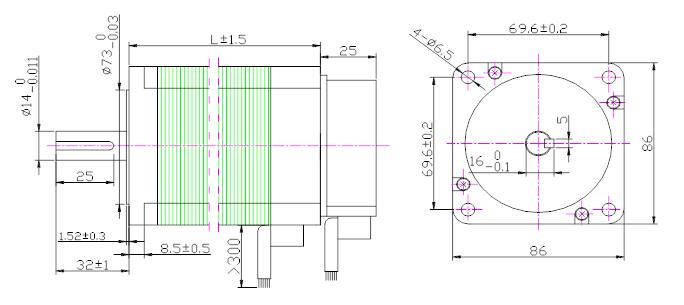

Dimensions：

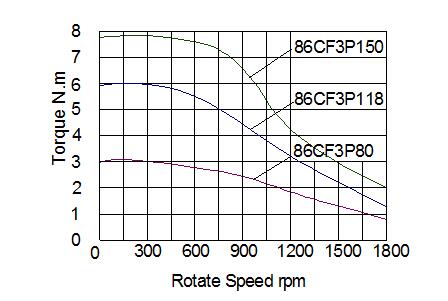

Pull-out Torque-pulse curve:
