2-PHASE NEMA34 SERIES CLOSED LOOP STEPPING MOTOR 34CF
2-PHASE EASY SERVO MOTOR 34CF SERIES
General Specifications：
Step Angle --------------------------------------------------------1.8° (full step)
Step Angle Accuracy --------------------------------±5%(full step, no load)
Resistance Accuracy ------------------------------------------------------±10%
Inductance Accuracy ------------------------------------------------------±20%
Temperature Rise ----------------80℃ Max(rated current, 2 phases on)
Ambient Temperature Range ------------------------------ -20℃∽+50℃
Insulation Resistance ------------------------------- 100MΩ Min. 500VDC
Dielectric Strength -----------------------------750VAC 50Hz 1mA 1 Minute
Insulation Class ---------------------------------------------------B Class (130℃)
Electrical Specifications:
Model | L Motor Length (mm) | Holding Torque (N.m) Min. | Rated Current (A) | Phase Resistance (Ω) | Phase Inductance (mH) | Rotor Inertia (kg.cm²) | Motor Weight (kg) |
1000 Encoder | |||||||
34CF8060-1000 | 80 | 4.0 | 6 | 0.426 | 4.8 | 1.23 | 2.3 |
34CF10060-1000 | 100 | 6.6 | 6 | 0.528 | 5.5 | 2.7 | 3.3 |
34CF11860-1000 | 118 | 8.7 | 6 | 0. 57 | 4.5 | 3.3 | 3.7 |
34CF13060-1000 | 130 | 10 | 6 | 0.55 | 6.0 | 4.0 | 4.0 |
34CF15060-1000 | 150 | 12 | 6 | 0.7 | 4.8 | 5.1 | 5.5 |
All the above are basic type. Customization for special specification and requirement is available.

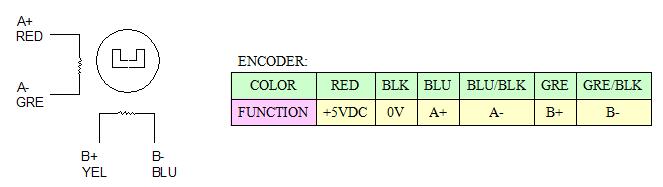

Wiring Diagram：

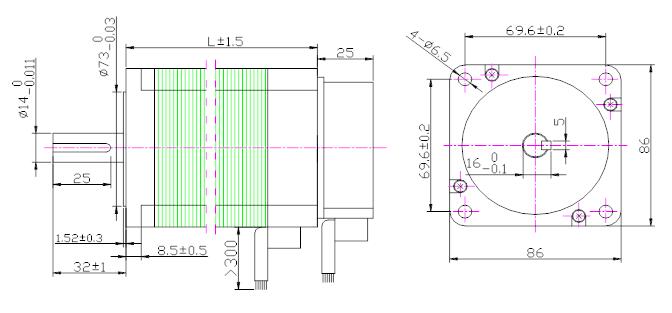

Dimensions：

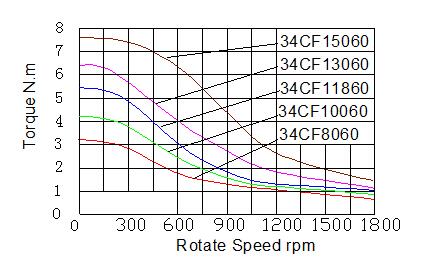

Pull-out Torque-pulse curve:
