2-PHAS ENEMA24 SERIES CLOSED LOOP STEPPING MOTOR 24CF
NEMA24 EASY SERVO MOTOR 24CF
General Specifications：
Step Angle ----------------------------------------------------------1.8° (full step)
Step Angle Accuracy ----------------------------------±5%(full step, no load)
Resistance Accuracy ------------------------------------------------------±10%
Inductance Accuracy --------------------------------------------------------±20%
Temperature Rise ------------------80℃ Max(rated current, 2 phases on)
Ambient Temperature Range ------------------------------- -20℃∽+50℃
Insulation Resistance -------------------------------- 100MΩ Min. 500VDC
Dielectric Strength ------------------------------500VAC 50Hz 1mA 1 Minute
Insulation Class --------------------------------------------------B Class (130℃)
Electrical Specifications:
odel | L Motor Length (mm) | Holding Torque (N.m) Min. | Rated Voltage DC(V) | Rated Current (A) | Phase Resistance (Ω) | Phase Inductance (mH) | Rotor Inertia (kg.cm²) | Motor Weight (kg) |
1000 Encoder | ||||||||
24CF8650-1000 | 107 | 3.0 | 24-48 | 5 | 0.4 | 2.0 | 0.69 | 1.5 |
All the above are basic type. Customization for special specification and requirement is available.

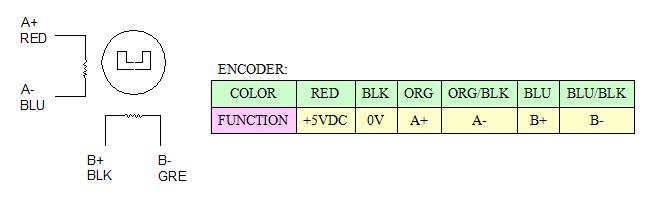

Wiring Diagram：

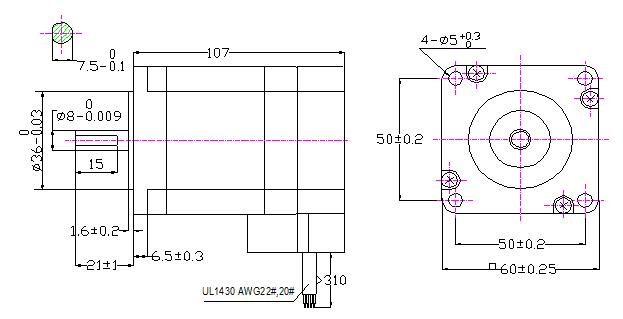

Dimensions：

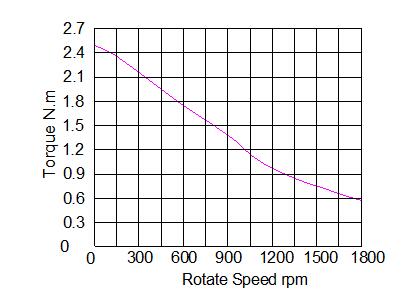

Pull-out Torque-pulse curve:
