Hybrid Step-Servo Motor
3-PHASE NEMA23 SERIES CLOSED LOOP STEPPING MOTOR 23CF3P
DATA£º2015-12-10 15:36:30¡¡¡¡VISIT£º
3-PHASE NEMA23 EASY SERVO MOTOR 23CF3P SERIES
General Specifications£º
Electrical Specifications:
Model | L Motor Length (mm) | Holding Torque (N.m) Min. | Rated Voltage DC(V) | Rated Current (A) | Phase Resistance (¦¸) | Phase Inductance (mH) | Rotor Inertia (kg.cm²) | Motor Weight (kg) |
1000 Encoder | ||||||||
23CF3P5652-1000 | 73 | 1.0 | 24-48 | 5.2 | 0.6 | 0.9 | 0.28 | 0.7 |
23CF3P8052-1000 | 97 | 2.0 | 24-48 | 5.2 | 0.9 | 1.6 | 0.52 | 1.1 |
23CF3P10052-1000 | 117 | 3.0 | 24-48 | 5.2 | 1.2 | 2.5 | 0.78 | 1.5 |
All the above are basic type. Customization for special specification and requirement is available.

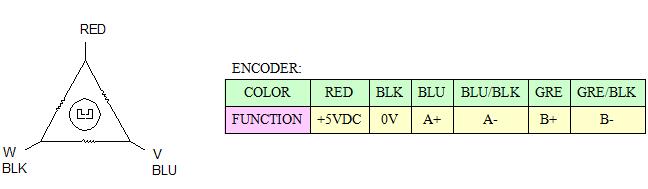

Wiring Diagram£º

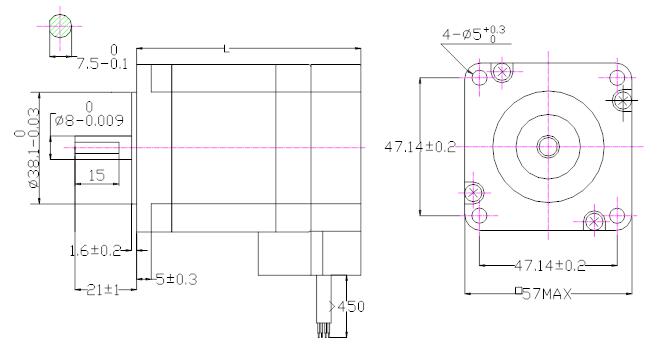

Dimensions£º

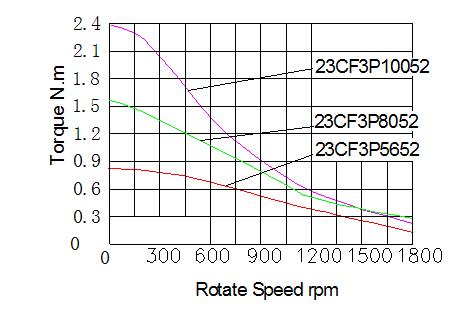

Pull-out Torque-pulse curve:
