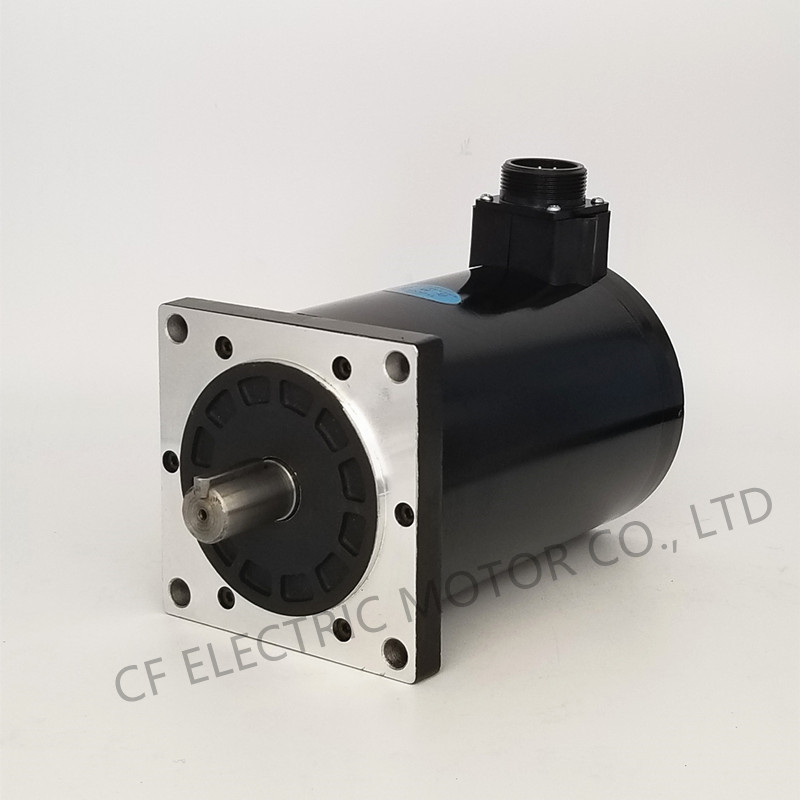

3-PHASE NEMA42 SERIES STEPPING MOTOR
General Specifications：
Step Angle---------------------------- 1.2°(full step)
Step Angle Accuracy-------------------±5%(full step, no load)
Resistance Accuracy-------------------±10%
Inductance Accuracy--------------------±20%
Temperature Rise-----------------------90℃ Max(rated current, 2 phases on)
Ambient Temperature Range------------ -20℃∽+50℃
Insulation Resistance---------------- 100MΩ Min. 500VDC
Dielectric Strength-------------------- 500VAC 50Hz 1mA 1 Minute
Insulation Class----------------------- F class
Electrical Specifications:

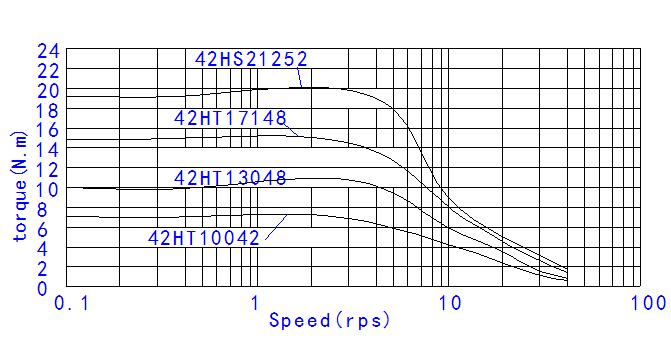

Model | L Motor Length (mm) | Holding Torque (N.m) Min. | Rated Current (A) | Phase Resistance (Ω) | Phase Inductance (mH) | Rotor Inertia (kg.cm²) | Lead Wire | Detent Torque (N.cm) Max. | Motor Weight (kg) |
42HT10042 | 100 | 8 | 4.2 | 1.17 | 10.87 | 5.83 | 3 | 30 | 4.5 |
42HT13048 | 130 | 12 | 4.2 | 2.33 | 20.17 | 9.41 | 3 | 50 | 6.1 |
42HT17148 | 171 | 16 | 4.8 | 2.25 | 27 | 14.28 | 3 | 60 | 8.3 |
42HT21252 | 212 | 20 | 5.2 | 2.17 | 33.73 | 19.16 | 3 | 70 | 10.4 |

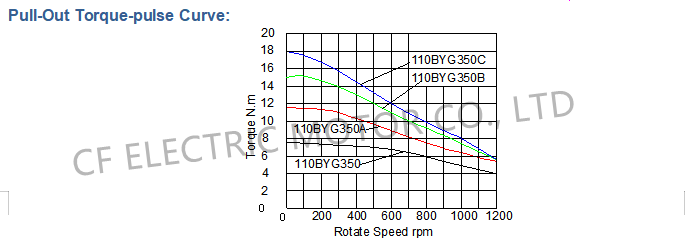

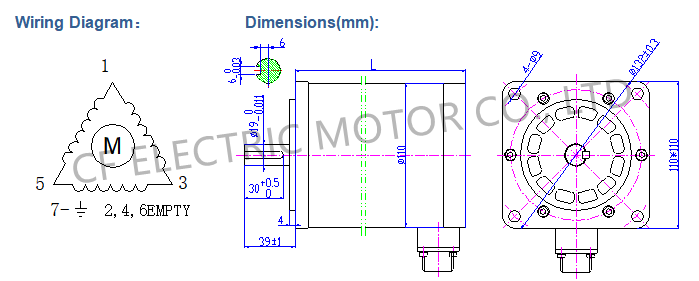

Model | Phase | L Motor Length (mm) | Holding Torque (N.m) Min. | Voltage （V） | Rated Current (A) | Rated Resistance (Ω) | Phase Inductance (mH) | Rotor Inertia (kg.cm²) | Motor Weight (kg) |
110BYG350 | 3 | 142 | 10 | 80~325 | 2.4 | 1.34 | 13.5 | 5.6 | 5.5 |
110BYG350A | 3 | 170 | 12.5 | 80~325 | 2.8 | 2.0 | 20 | 8.4 | 7.5 |
110BYG350B | 3 | 198 | 18 | 80~325 | 2.8 | 2.6 | 30 | 12.6 | 11 |
110BYG350C | 3 | 226 | 22 | 80~325 | 3.0 | 3.2 | 35 | 16.8 | 13 |
*We can manufacture products according to customer's requirements.
*Shown in the table is the representative product. It can be customized according to the requirements of users.
