2-PHASE NEMA23 STEPPING MOTOR 23HS
2-PHASE NEMA23 STEPPER MOTOR 23HS
General Specifications：
Step Angle ------------------------------------------------------1.8° (full step)
Step Angle Accuracy -------------------------------±5%(full step, no load)
Resistance Accuracy ----------------------------------------------------±10%
Inductance Accuracy ----------------------------------------------------±20%
Temperature Rise ---------------80℃ Max(rated current, 2 phases on)
Ambient Temperature Range ----------------------------- -20℃∽+50℃
Insulation Resistance ----------------------------- 100MΩ Min. 500VDC
Dielectric Strength --------------------------- 500VAC 50Hz 1mA 1 Minute
Insulation Class ---------------------------------------------------------- B class
Electrical Specifications:
Model | L Motor Length (mm) | Holding Torque (N.cm) Min. | Rated Current (A) | Phase Resistance (Ω) | Phase Inductance (mH) | Rotor Inertia (g.cm²) | Lead Wire | Detent Torque (N.cm) Max. | Motor Weight (g) |
23HS4110 | 41 | 40 | 1.0 | 5.2 | 5.5 | 150 | 6 | 2.5 | 470 |
23HS4120 | 41 | 55 | 2.0 | 1.2 | 2.5 | 150 | 4 | 2.5 | 470 |
23HS4506 | 45 | 80 | 0.6 | 12 | 26 | 190 | 4 | 2.8 | 520 |
23HS4525 | 45 | 80 | 2.5 | 1.0 | 2.2 | 190 | 4 | 2.8 | 520 |
23HS5125 | 51 | 110 | 2.5 | 1.2 | 3.2 | 230 | 4 | 2.8 | 520 |
23HS5106 | 51 | 62 | 0.6 | 6.8 | 9.2 | 230 | 6 | 3.0 | 590 |
23HS561506 | 56 | 90 | 0.6 | 3.2 | 5.5 | 280 | 6 | 3.5 | 590 |
23HS5625 | 56 | 110 | 2.5 | 1.3 | 4.2 | 280 | 4 | 3.5 | 680 |
23HS5630 | 56 | 110 | 3.0 | 0.8 | 2.4 | 280 | 4 | 3.5 | 680 |
23HS6430 | 64 | 150 | 3.0 | 0.8 | 2.3 | 380 | 4 | 5.0 | 850 |
23HS761506 | 76 | 140 | 0.6 | 4.5 | 7.8 | 440 | 6 | 6.0 | 1050 |
23HS7625 | 76 | 170 | 2.5 | 1.8 | 6.5 | 440 | 4 | 6.0 | 1050 |
23HS7630 | 76 | 170 | 3.0 | 1.0 | 3.5 | 440 | 4 | 6.0 | 1050 |
23HS8230 | 82 | 190 | 3.0 | 1.1 | 3.6 | 440 | 4 | 6.0 | 1150 |
23HS10030 | 100 | 250 | 3.0 | 1.4 | 5.5 | 680 | 4 | 10 | 1250 |
23HS11230 | 112 | 280 | 3.0 | 1.6 | 6.8 | 800 | 4 | 12 | 1400 |
23HS11242 | 112 | 280 | 4.2 | 0.9 | 3.8 | 800 | 4 | 12 | 1400 |
*Shown in the table is the representative product. It can be customized according to the requirements of users.

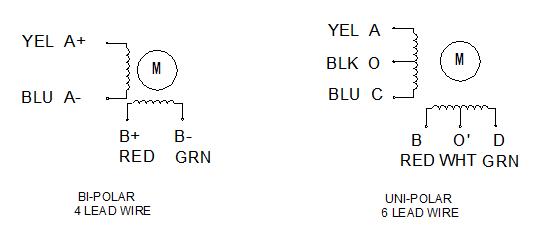

Wiring Diagram：

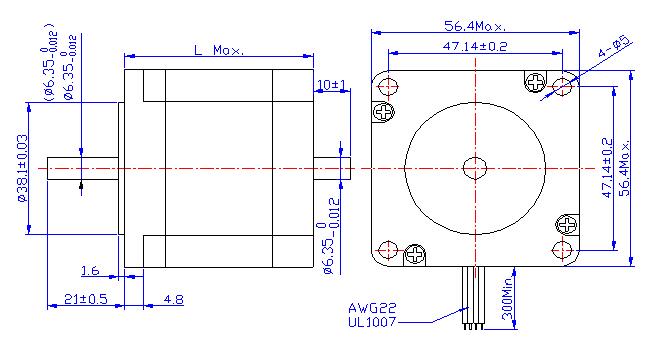

Dimensions：
