2-PHASE NEMA24 SERIES STEPPING MOTOR 24HS
2-PHASE NEMA24 STEPPER MOTOR 24HS
General Specifications：
Step Angle ----------------------------------------------------1.8° (full step)
Step Angle Accuracy ----------------------------±5%(full step, no load)
Resistance Accuracy -------------------------------------------------±10%
Inductance Accuracy -------------------------------------------------±20%
Temperature Rise ------------80℃ Max(rated current, 2 phases on)
Ambient Temperature Range ------------------------- -20℃∽+50℃
Insulation Resistance -------------------------- 100MΩ Min. 500VDC
Dielectric Strength ----------------------- 500VAC 50Hz 1mA 1 Minute
Insulation Class ------------------------------------------------------- B class
Electrical Specifications:
Model | L Motor Length (mm) | Holding Torque (N.cm) Min. | Rated Current (A) | Phase Resistance (Ω) | Phase Inductance (mH) | Rotor Inertia (g.cm²) | Lead Wire | Detent Torque (N.cm) Max. | Motor Weight (g) |
24HS4120 | 41 | 75 | 2.0 | 1.2 | 2.5 | 180 | 4 | 3.0 | 500 |
24HS4525 | 45 | 85 | 2.5 | 1.0 | 2.2 | 200 | 4 | 3.5 | 550 |
24HS5125 | 51 | 140 | 2.5 | 1.2 | 3.2 | 250 | 4 | 4.0 | 580 |
24HS5625 | 56 | 160 | 2.5 | 1.3 | 4.2 | 350 | 4 | 4.0 | 580 |
24HS5630 | 56 | 160 | 3.0 | 0.8 | 2.4 | 350 | 4 | 4.0 | 580 |
24HS5642 | 56 | 160 | 4.2 | 0.4 | 1.2 | 350 | 4 | 4.0 | 580 |
24HS6425 | 64 | 180 | 2.5 | 1.5 | 4.5 | 450 | 4 | 5.0 | 850 |
24HS6430 | 64 | 180 | 3.0 | 0.8 | 2.3 | 450 | 4 | 5.0 | 850 |
24HS6442 | 64 | 180 | 4.2 | 0.55 | 1.2 | 450 | 4 | 5.0 | 850 |
24HS7625 | 76 | 220 | 2.5 | 1.8 | 6.5 | 550 | 4 | 7.0 | 1150 |
24HS7630 | 76 | 220 | 3.0 | 1.0 | 3.5 | 550 | 4 | 7.0 | 1150 |
24HS7642 | 76 | 220 | 4.2 | 0.6 | 1.8 | 550 | 4 | 7.0 | 1150 |
24HS8825 | 88 | 300 | 2.5 | 2 | 4.5 | 780 | 4 | 12 | 1400 |
24HS8842 | 88 | 300 | 4.2 | 0.8 | 3.0 | 780 | 4 | 12 | 1400 |
*Shown in the table is the representative product. It can be customized according to the requirements of users.
Wiring Diagram：

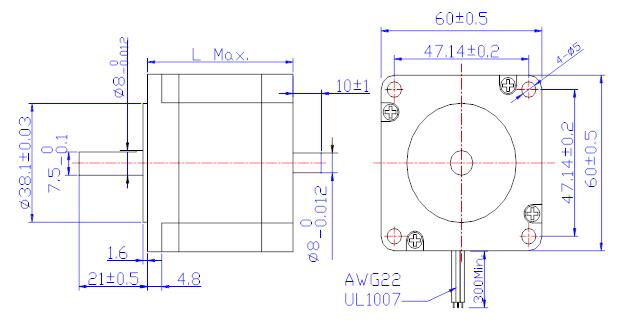

Dimensions：
