3-PHASE NEMA24 SERIES STEPPING MOTOR 24HT
3-PHASE NEMA24 STEPPER MOTOR 24HT
General Specifications：
Step Angle --------------------------------------------------1.2° (full step)
Step Angle Accuracy --------------------------±5%(full step, no load)
Resistance Accuracy ------------------------------------------------±10%
Inductance Accuracy ------------------------------------------------±20%
Temperature Rise ----------80℃ Max(rated current, 2 phases on)
Ambient Temperature Range ------------------------- -20℃∽+50℃
Insulation Resistance ------------------------- 100MΩ Min. 500VDC
Dielectric Strength -------------------- 500VAC 50Hz 1mA 1 Minute
Insulation Class ---------------------------------------------------- B class
Electrical Specifications:
Model | L Motor Length (mm) | Holding Torque (N.cm) Min. | Rated Current (A) | Phase Resistance (Ω) | Phase Inductance (mH) | Rotor Inertia (g.cm²) | Lead Wire | Detent Torque (N.cm) Max. | Motor Weight (g) |
24HT4552 | 45 | 0.6 | 5.2 | 1.2 | 2.5 | 200 | 3 | 2.0 | 550 |
24HT5656 | 56 | 1.2 | 5.6 | 1.0 | 2.2 | 350 | 3 | 3.0 | 600 |
24HT7658 | 76 | 1.8 | 5.8 | 1.2 | 3.2 | 550 | 3 | 4.0 | 1200 |
*Shown in the table is the representative product. It can be customized according to the requirements of users.

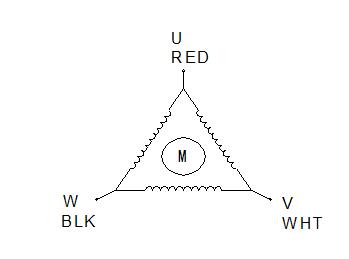

Wiring Diagram：

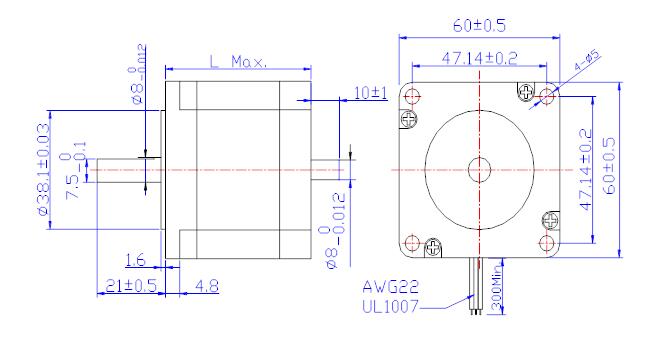

Dimensions：
