2-PHASE NEMA34 SERIES STEPPING MOTOR 34HS
2-PHASE NEMA34 STEPPER MOTOR 34HS
General Specifications：
Step Angle --------------------------------------------------------1.8° (full step)
Step Angle Accuracy --------------------------------±5%(full step, no load)
Resistance Accuracy -----------------------------------------------------±10%
Inductance Accuracy ------------------------------------------------------±20%
Temperature Rise ----------------80℃ Max(rated current, 2 phases on)
Ambient Temperature Range ------------------------------ -20℃∽+50℃
Insulation Resistance ------------------------------ 100MΩ Min. 500VDC
Dielectric Strength --------------------------- 500VAC 50Hz 1mA 1 Minute
Insulation Class ---------------------------------------------------------- B class
Electrical Specifications:
Model | L Motor Length (mm) | Holding Torque (N.cm) Min. | Rated Current (A) | Phase Resistance (Ω) | Phase Inductance (mH) | Rotor Inertia (kg.cm²) | Lead Wire | Detent Torque (N.cm) Max. | Motor Weight (g) |
34HS6540 | 65 | 240 | 4 | 0.65 | 3.3 | 0.8 | 4 | 10 | 1.9 |
34HS7060 | 70 | 340 | 6 | 0.4 | 1.7 | 1.0 | 4 | 12 | 2.1 |
34HS8060 | 80 | 450 | 6 | 0.45 | 3.0 | 1.23 | 4 | 15 | 2.3 |
34HS10060 | 100 | 728 | 6 | 0.50 | 4.8 | 2.7 | 4 | 20 | 3.3 |
34HS11860 | 118 | 870 | 6 | 0.57 | 5.5 | 3.3 | 4 | 30 | 3.7 |
34HS13060 | 130 | 1000 | 6 | 0.6 | 5.8 | 4.0 | 4 | 35 | 4.0 |
34HS15060 | 150 | 1200 | 6 | 0.7 | 6.8 | 5.0 | 4 | 45 | 5.5 |
*Shown in the table is the representative product. It can be customized according to the requirements of users.
Wiring Diagram：

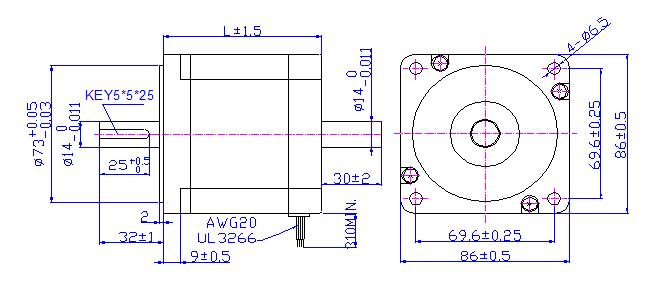

Dimensions：

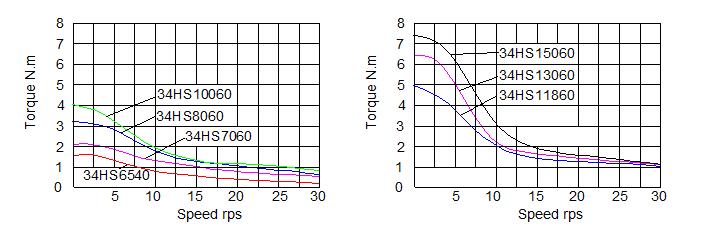

Pull-out Torque-pulse curve:
