2 PHASE NEMA42 STEPPING MOTOR

DATA:2017-03-30 13:55:24  VISIT:

HYBRID STEPPING MOTOR 42HS SERIES


General Specifications:

Step Angle -------------------------------------------------------1.8° (full step)

Step Angle Accuracy -------------------------------±5%(full step, no load)

Resistance Accuracy ----------------------------------------------------±10%

Inductance Accuracy -----------------------------------------------------±20%

Temperature Rise ----------------80 Max(rated current, 2 phases on)

Ambient Temperature Range -----------------------------  -20℃∽+50

Insulation Resistance -------------------------------  100MΩ Min. 500VDC

Dielectric Strength ----------------------------750VAC 50Hz 1mA 1 Minute

Insulation Class ---------------------------------------------------------- B class


Electrical Specifications:

Model

L

Motor Length

(mm)

Holding

Torque

(N.m)

Min.

Rated

Current

(A)

Phase

Resistance

(Ω)

Phase

Inductance

(mH)

Rotor

Inertia

(kg.cm²)

Lead

Wire

Detent

Torque

(N.cm)

Max.

Motor

Weight

(kg)

42HS9950

99

11.2

5

0.64

9.3

5.5

4

20

5

42HS11560

115

13.5

6

0.455

6.1

6.8

4

28

6

42HS15060

150

22

6

1.0

17

10.9

4

35

8.4

42HS20180

201

30

8

0.7

12

16.2

4

45

11.7

*Shown in the table is the representative product. It can be customized according to the requirements of users.

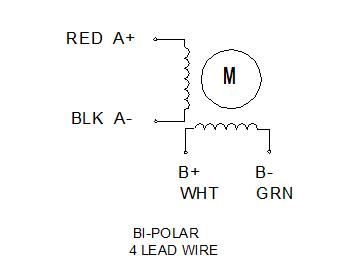

 Wiring Diagram:

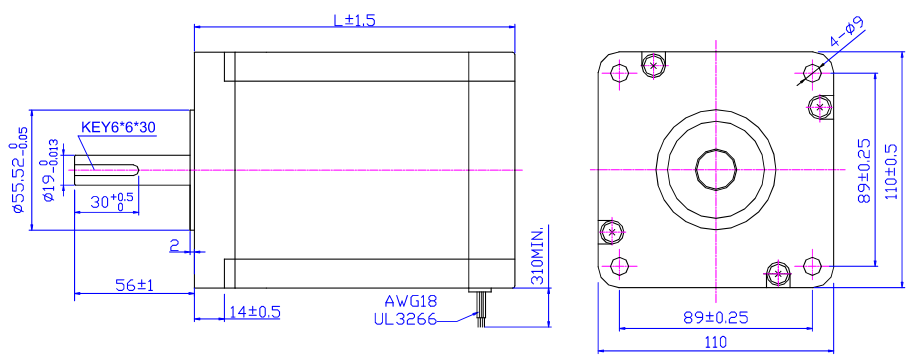

 Dimensions:

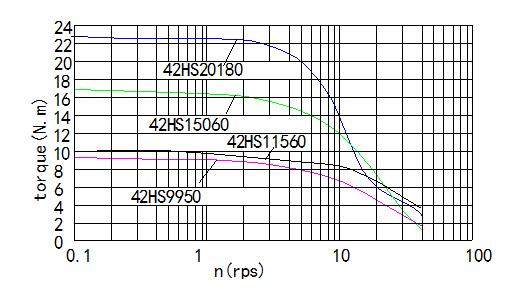

Pull-out Torque-pulse curve:
