3-PHASE 90BYG SERIES STEPPING MOTOR
General Specification£º
Step Angle ------------------------------------------------------------1.8¡ã;1.2¡ã(full step)
Step Accuracy----------------------------------------------------¡À5%(full step, no load)
Resistance Accuracy----------------------------------------------------------------¡À10%
Inductance Accuracy----------------------------------------------------------------¡À20%
Temperature Rise----------------------------------80¡æMax (rated current, 2phases on)
Ambient Temperature Range----------------------------------------------- -20¡æ¡×+50¡æ
Insulation Resistance----------------------------------------------- 100M¦¸ Min. 500VDC
Dielectric Strength-----------------------------------------------750VAC 50Hz 1mA 1min
Insulation Class-------------------------------------------------------------Fclass£¨155¡æ£©
Rotation------------------------------------------------------ CW(See From Front Flange)
Electrical Specifications:
Model | No. of phase | L Motor Length (mm) | Holding Torque (N.m) Min. | Rated Voltage £¨VDC) | Rated Current (A) | Rated Resistance (¦¸) | Phase Inductance (mH) | Motor Weight (kg) |
90BYG250A | 2 | 75 | 2.5 | 40--110 | 4 | 0.47 | 4.6 | 2.5 |
90BYG250B | 2 | 105 | 5.0 | 40--110 | 4 | 0.95 | 9.3 | 4.0 |
90BYG250C | 2 | 135 | 7.5 | 40--110 | 4 | 1.4 | 18.5 | 5.5 |
90BYG250D | 2 | 165 | 10.0 | 40--110 | 4 | 1.85 | 25 | 7.0 |
90BYG350A | 3 | 75 | 2.26 | 24-150 | 3 | 0.6 | 3.5 | 2.5 |
90BYG350B | 3 | 105 | 4.52 | 24-150 | 3 | 1.15 | 7.0 | 4.0 |
90BYG350C | 3 | 135 | 6.78 | 24-150 | 3 | 1.7 | 10.5 | 5.5 |
90BYG350D | 3 | 165 | 9.04 | 24-150 | 3 | 2.2 | 14 | 7.0 |

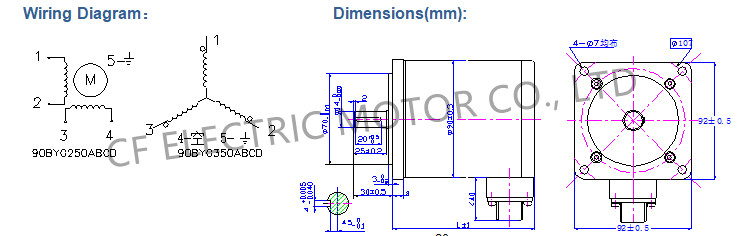

*Shown in the table is the representative product. It can be customized according to the requirements of users.
