3-PHASE 110BC STEPPING MOTOR
3 phase Variable Reluctance(VR) Type Stepper Motor 110BC Series
General Specification:
Step Angle ---------------------------------------------------- 1.5°/0.75° (full step/half step)
Step Accuracy ---------------------------------------------------------±5%(full step,no load)
Temperature Rise ---------------------------------------85K Max (rated current, 2 phase)
Temperature Rise -------------------------------------------------------------- -20℃∽+50℃
Insulation Resistance ----------------------------------------------- 100MΩ Min. 500VDC
Dielectric Strength -------------------------------------------------500VAC 50Hz 1mA 1min
Insulation Class--------------------------------------------------------------------------- B class
Radial Play---------------------------------------------------------------------------0.02mm Max
Axial Play------------------------------------------------------------------------------0.08mm Max
Rotation --------------------------------------------------------- CW(see from Front Flange)
Electrical Specifications:
Model | Holding Torque (N.cm) Min. | Rated Volt (V) | Current (A) | Phase Resistance (Ω) | Phase Inductance (mH) | Step Angle (deg) | No load Run Frequence (kHz) | Rotor Inertia (kg.cm2) | Motor Weight (kg) |
110BF003 | 7.84 | 80-300 | 6 | 0.47 | 13.5 | 0.75 | 15 | 5.0 | 8.5 |
110BF004 | 4.94 | 80-300 | 4 | 3.5 | 30 | 0.75 | 12 | 3.75 | 5.5 |
110BC380C | 9.80 | 80-300 | 6 | 0.56 | 17.5 | 0.75 | 15 | 6.5 | 11 |
110BC380D | 5.50 | 80-300 | 6 | 0.37 | 12.5 | 0.75 | 15 | 4.1 | 6.0 |
110BC380F | 11.76 | 80-300 | 6 | 0.66 | 21.5 | 0.75 | 15 | 8.0 | 12 |
110BC380L | 7.84 | 80-300 | 6 | 0.47 | 13.5 | 0.75 | 15 | 5.0 | 8.5 |
110BC380M | 9.80 | 80-300 | 6 | 0.56 | 17.5 | 0.75 | 15 | 6.5 | 11 |
*The models shown above is the representative product. It can be customized according to the users' requirements.

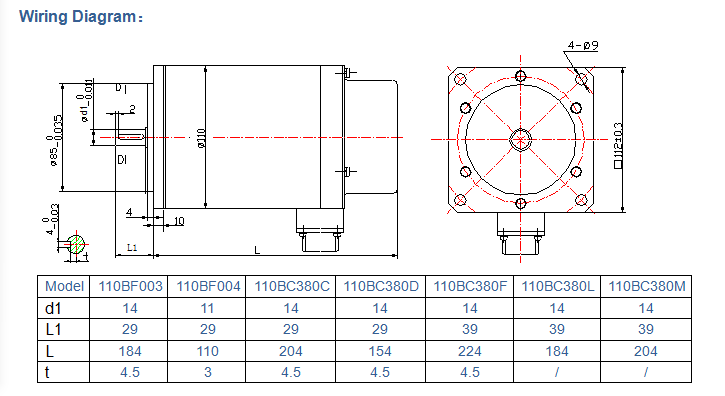

Wiring method:
Air connection plug-in for the motor, the connection method is as following.
1,2—A,A′ 3,4—B,B′ 5,6—C,C′ 7—Grounding(frame)
Notice:
1. The motor keeps 1 year warranty since the delivery date.
2. The motor should be kept in warehouse which is -20℃ to +40℃, and the relative humidity is not large than 90%. Also, there is no corrosive gas in the air.
