3-PHASE 130BC SERIES STEPPING MOTOR

DATA:2018-08-13 13:50:21  VISIT:

3 Phase Variable Reluctance (VR) Type Stepping Motor 130BC Series




General Specifications



Step Angle ------------------------------------------------ 1.2°/0.6° (Full step/half step)

Step Accuracy -----------------------------------------------------±5%(full step, no load)

Temperature Rise ------------------------------85K Max (rated current, 2phase on)

Ambient Temperature Rise ---------------------------------------------  -20℃∽+50

Insulation Resistance -----------------------------------------  100MΩ Min. 500VDC

Dielectric Strength ---------------------------------------------500VAC 50Hz 1mA 1min

Insulation Class----------------------------------------------------------------------- B class

Radial Force---------------------------------------------------------------------0.02mm Max

Axial Force-----------------------------------------------------------------------0.08mm Max

Rotation ---------------------------------------------------- CW(See from Front Flange)


Electrical Specifications:

Model

Holding   Torque

(N.cm)

Min.

Rated   Volt

V

Current

(A)

Phase   Resistance

(Ω)

Phase   Inductance

(mH)

Step   Angle

deg

No Load   Run Frequency

kHz

Rotor   Inertia

kg.cm2

Motor   Weight

(kg)

130BC3100

11.76

80-300

8

0.37

11

0.6

15

10.5

10

130BC3100A

19.6

80-300

10

0.65

22

0.6

15

18.2

18

130BC3100B

18

80-300

10

0.51

15

0.6

15

15

16

*The models shown above is the representative product. It can be customized according to the users' requirements.

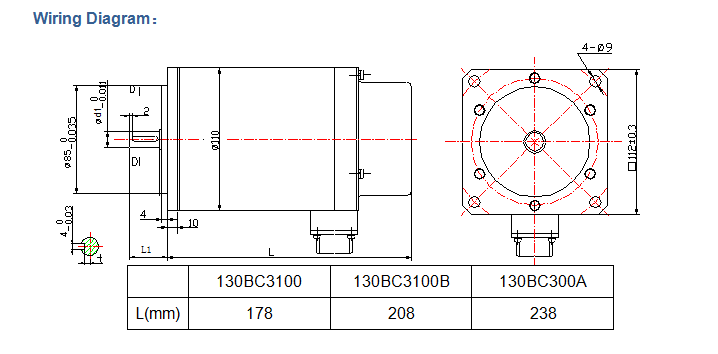

Wiring Method

Air connection plug-in for the motor, the connection method is as following.

1,2—A,A  3,4—B,B 5,6—C,C  7—Groundingframe



Notice:

1. The motor keeps 1 year warranty since the delivery date.

2. The motor should be kept in warehouse which is -20℃ to +40℃, and the relative humidity is not larger than 90%. Also, there is no corrosive gas in the air.
