5-PHASE 86BYGH550 STEPPING MOTOR

DATA：2021-09-14 14:29:08　　VISIT：

HYBRID STEPPER MOTOR 86BYGH550 SERIES

General Specification：

Step Angle --------------------------------------------------------0.72°/0.36°(full step)

Step Accuracy -----------------------------------------------±3.5%(full step, no load)

Resistance Accuracy ---------------------------------------------------------------±10%

Inductance Accuracy ----------------------------------------------------------------±20%

Temperature Rise------------------------80℃ Max (rated current, 2 phases on)

Ambient Temperature Range ------------------------------------------ -20℃∽+50℃

Insulation Resistance ----------------------------------------- 100MΩ Min. 500VDC

Dielectric Strength ------------------------------------------750VAC 50Hz 1mA 1min

Insulation Class---------------------------------------------------------B class（130℃）

Shaft Axial Play-----------------------------------------------0.08mm Max(450g Load)

Shaft Radial Play---------------------------------------------0.02mm Max(450g Load)

Max. Radial Force----------------------------------------220N(20mm from the flange)

Max. Axial Force---------------------------------------------------------------------------60N

Rotation ---------------------------------------------------- CW(See From Front Flange)

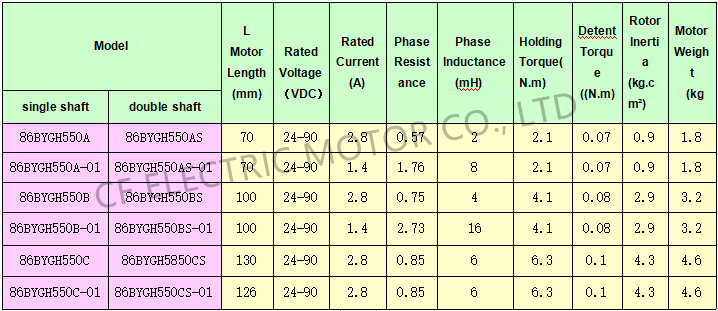

Electrical Specifications:


*Shown in the table is the representative product. It can be customized according to the requirements of users.

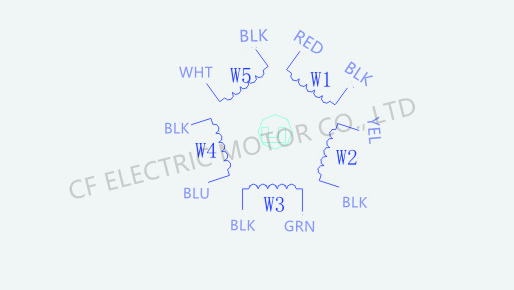

Wiring Diagram

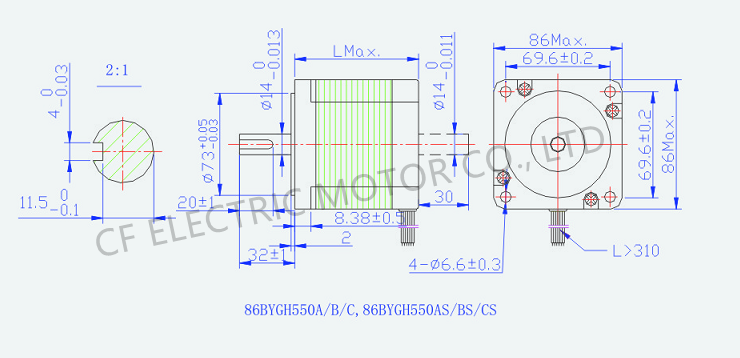

Dimensions

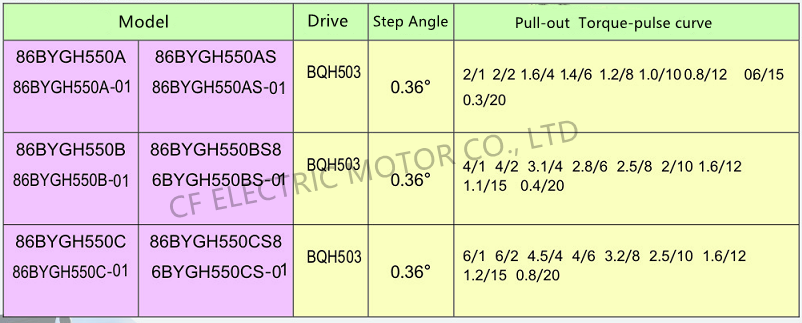

Pull-out Torque-pulse curve
