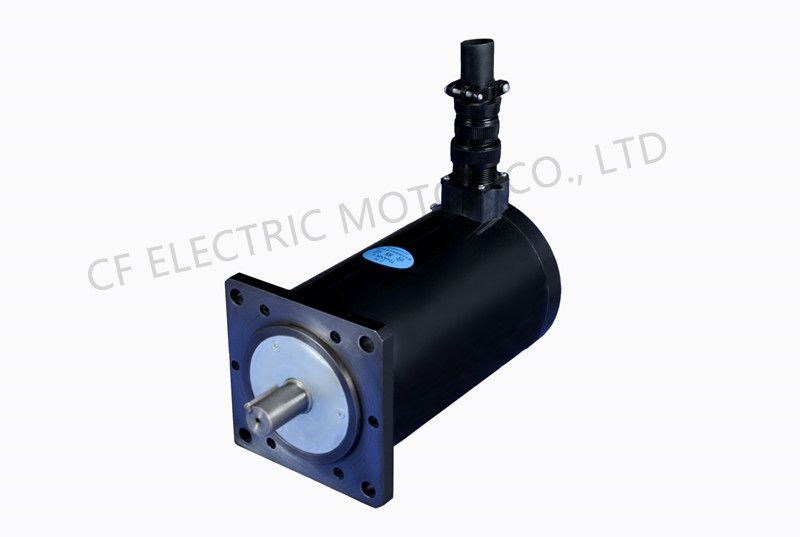

NEMA52 130BYG STEPPING MOTOR
Nema52 HYBRID STEPPER MOTOR 130BYG SERIES
General Specification:
Step Angle------------------------------------------------------------------------------------------------------------- 1.8°,1.2°,0.72° (full step)
Step Accuracy ----------------------------------------------------------------------------------------------------------------±5%(full step, no load)
Resistance Accuracy------------------------------------------------------------------------------------------------------------------------±10%
Inductance Accurac ------------------------------------------------------------------------------------------------------------------------------±20%
Temperature Rise ------------------------------------------------------------------------------------------------------------------------------85℃ Max
Ambient Temperature Range ------------------------------------------------------------------------------------------------------- 20℃∽+50℃
Insulation Resistance ------------------------------------------------------------------------------------------------------- 100MΩ Min. 500VDC
Dielectric Strengthh --------------------------------------------------------------------------------------------------1000VAC 50Hz 1mA 1min
Insulation Class---------------------------------------------------------------------------------------------------------------------- Fclass(155℃)
Electrical Specifications:
Model | L Motor Length (mm) | Holding Torque (N.m) Min. | Rated Current (A) | Phase Resistance (Ω) | Phase Inductance (mH) | Rotor Inertia (kg.cm²) | Lead Wire | Detent Torque (N. m) Max. | Motor Weight (kg) |
130BYG250 | 169 | 22 | 6 | 0.55 | 7.5 | 23 | 4 | 0.8 | 12.7 |
130BYG250A | 197 | 27 | 6 | 0.65 | 9.25 | 28.75 | 4 | 1.0 | 15 |
130BYG250A-01 | 225 | 35 | 6 | 0.75 | 10.7 | 35 | 4 | 1.2 | 17 |
130BYG250B | 253 | 40 | 7 | 0.72 | 9.7 | 40.25 | 4 | 1.4 | 19 |
130BYG250B-01 | 281 | 45 | 7 | 0.80 | 10.7 | 45.5 | 4 | 1.6 | 21 |
130BYG250Z | 169 | 22 | 6 | 0.55 | 7.5 | 23 | 4 | 0.8 | 12.7 |
130BYG250AZ | 197 | 27 | 6 | 0.65 | 9.25 | 28.75 | 4 | 1.0 | 15 |
130BYG250A-01Z | 225 | 35 | 6 | 0.75 | 10.7 | 35 | 4 | 1.2 | 17 |
130BYG250BZ | 253 | 40 | 7 | 0.72 | 9.7 | 40.25 | 4 | 1.4 | 19 |
130BYG250B-01Z | 281 | 45 | 7 | 0.80 | 10.7 | 45.5 | 4 | 1.6 | 21 |
Model | L Motor Length (mm) | Holding Torque (N.m) Min. | Current (A) | Phase Resistance (Ω) | Phase Inductance (mH) | Rotor Inertia (kg.cm2) | Lead Wire | Detent Torque (N. m) Max. | Motor Weight (kg) |
130BYG350 | 169 | 22 | 5 | 0.50 | 6.68 | 23 | 3 | 0.6 | 12.7 |
130BYG350A | 197 | 30 | 5 | 0.62 | 8.35 | 28.75 | 3 | 0.7 | 15 |
130BYG350A-01 | 225 | 36 | 5 | 0.75 | 9.23 | 35 | 3 | 0.8 | 17 |
130BYG350B | 253 | 42 | 6 | 0.70 | 9.62 | 40.25 | 3 | 0.9 | 19 |
130BYG350B-01 | 281 | 50 | 6 | 0.93 | 11 | 45.5 | 3 | 1.0 | 21 |
130BYG350Z | 169 | 22 | 5 | 0.50 | 6.68 | 23 | 3 | 0.6 | 12.7 |
130BYG350AZ | 197 | 30 | 5 | 0.62 | 8.35 | 28.75 | 3 | 0.7 | 15 |
130BYG350A-01Z | 225 | 36 | 5 | 0.75 | 9.23 | 35 | 3 | 0.8 | 17 |
130BYG350BZ | 253 | 42 | 6 | 0.70 | 9.62 | 40.25 | 3 | 0.9 | 19 |
130BYG350B-01Z | 281 | 50 | 6 | 0.93 | 11 | 45.5 | 3 | 1.0 | 21 |
Model | L Motor Length (mm) | Holding Torque (N.m) Min. | Current (A) | Phase Resistance (Ω) | Phase Inductance (mH) | Rotor Inertia (kg.cm²) | Lead Wire | Detent torque (N. m) Max. | Motor Weight (kg) |
130BYG550 | 169 | 22 | 5 | 0.4 | 5.0 | 23 | 5 | 0.6 | 12.7 |
130BYG550A | 197 | 27 | 5 | 0.5 | 6.25 | 28.75 | 5 | 0.7 | 15 |
130BYG550A-01 | 225 | 35 | 5 | 0.6 | 7.5 | 35 | 5 | 0.8 | 17 |
130BYG550B | 253 | 40 | 8 | 0.45 | 6.8 | 40.25 | 5 | 0.9 | 19 |
130BYG550B-01 | 281 | 45 | 8 | 0.5 | 7.8 | 45.5 | 5 | 1.0 | 21 |
130BYG550Z | 169 | 22 | 5 | 0.4 | 5.0 | 23 | 5 | 0.6 | 12.7 |
130BYG550AZ | 197 | 27 | 5 | 0.5 | 6.25 | 28.75 | 5 | 0.7 | 15 |
130BYG550A-01Z | 225 | 35 | 5 | 0.6 | 7.5 | 35 | 5 | 0.8 | 17 |
130BYG550BZ | 253 | 40 | 8 | 0.45 | 6.8 | 40.25 | 5 | 0.9 | 19 |
130BYG550B-01Z | 281 | 45 | 8 | 0.5 | 7.8 | 45.5 | 5 | 1.0 | 21 |
*Shown in the table is the representative product. It can be customized according to the requirements of users.

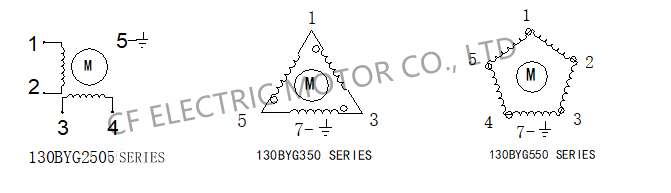

Wiring Diagram:

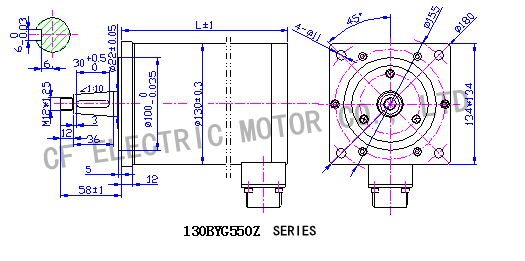

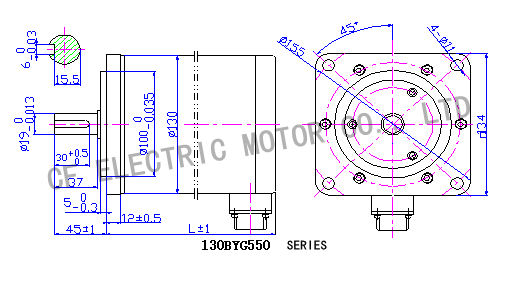

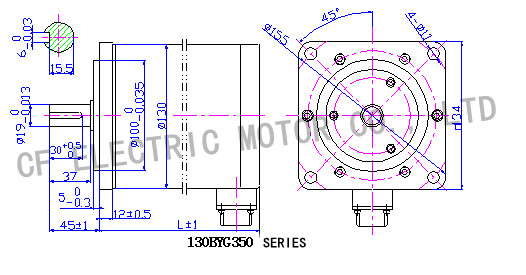

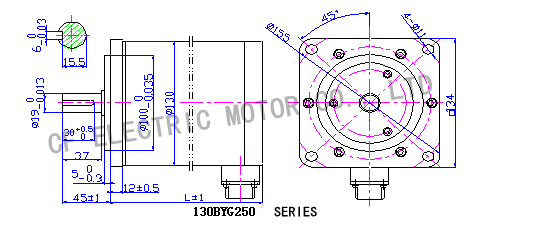

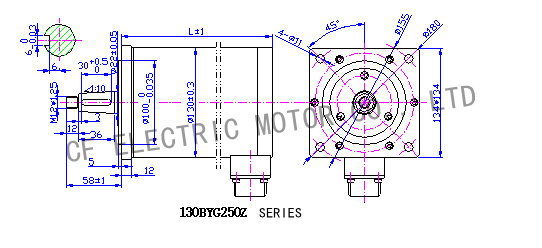

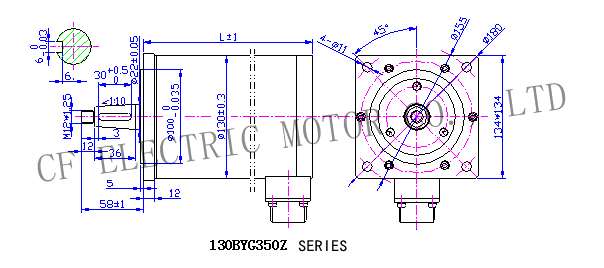

Dimensions(mm):

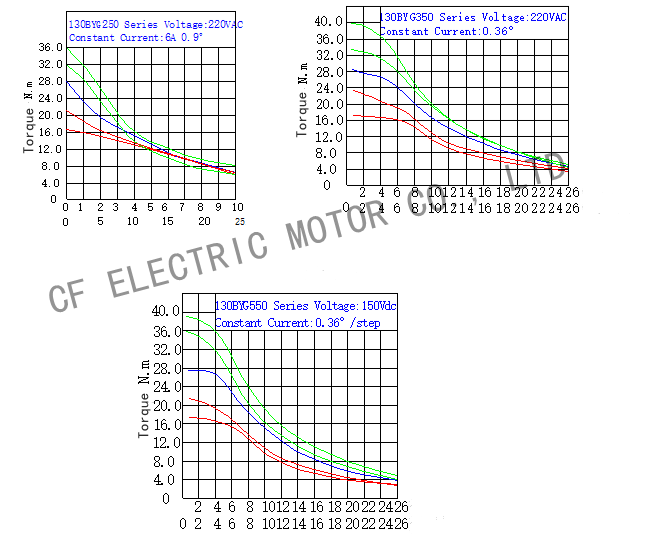

Pull-Out Torque-pulse Curve:
