2-PHASE NEMA 23 SERIES CLOSED LOOP STEPPING MOTOR 23CF
2-PHASE NEMA23 EASY SERVO MOTOR
General Specifications：
Step Angle ------------------------------------------------------1.8° (full step)
Step Angle Accuracy -------------------------------±5%(full step, no load)
Resistance Accuracy ----------------------------------------------------±10%
Inductance Accuracy ----------------------------------------------------±20%
Temperature Rise --------------80℃ Max(rated current, 2 phases on)
Ambient Temperature Range ---------------------------- -20℃∽+50℃
Insulation Resistance ---------------------------- 100MΩ Min. 500VDC
Dielectric Strength -------------------------500VAC 50Hz 1mA 1 Minute
Insulation Class ----------------------------------------------B Class (130℃)
Electrical Specifications:
Model | L Motor Length (mm) | Holding Torque (N.m) Min. | Rated Voltage DC(V) | Rated Current (A) | Phase Resistance (Ω) | Phase Inductance (mH) | Rotor Inertia (kg.cm²) | Motor Weight (kg) |
1000 Encoder | ||||||||
23CF5630-1000 | 73 | 1.0 | 24-48 | 3 | 0.7 | 1.2 | 0.26 | 0.6 |
23CF7630-1000 | 93 | 2.0 | 24-48 | 3 | 0.7 | 3.0 | 0.48 | 1.1 |
23CF11540-1000 | 129 | 3.0 | 24-48 | 4 | 1.0 | 3.6 | 0.88 | 1.5 |
All the above are basic type. Customization for special specification and requirement is available.

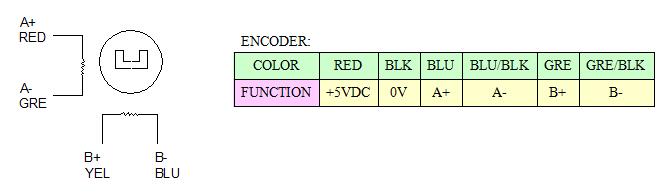

Wiring Diagram：

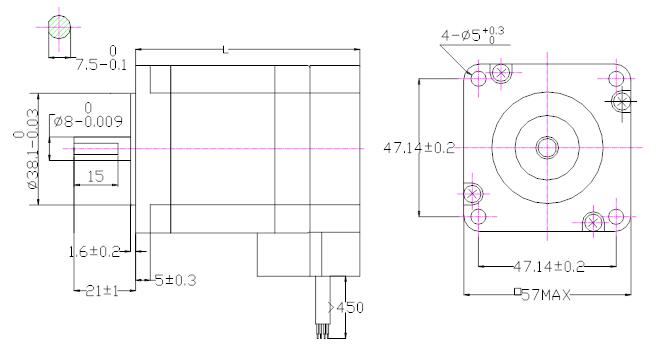

Dimensions：

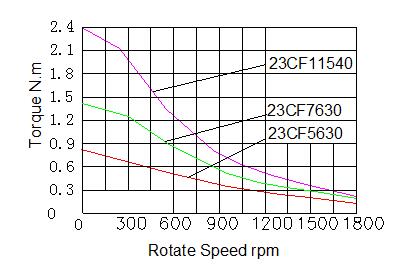

Pull-out Torque-pulse curve:
